Harley-Davidson X™ 500 Harley-Davidson X™ 500

2025

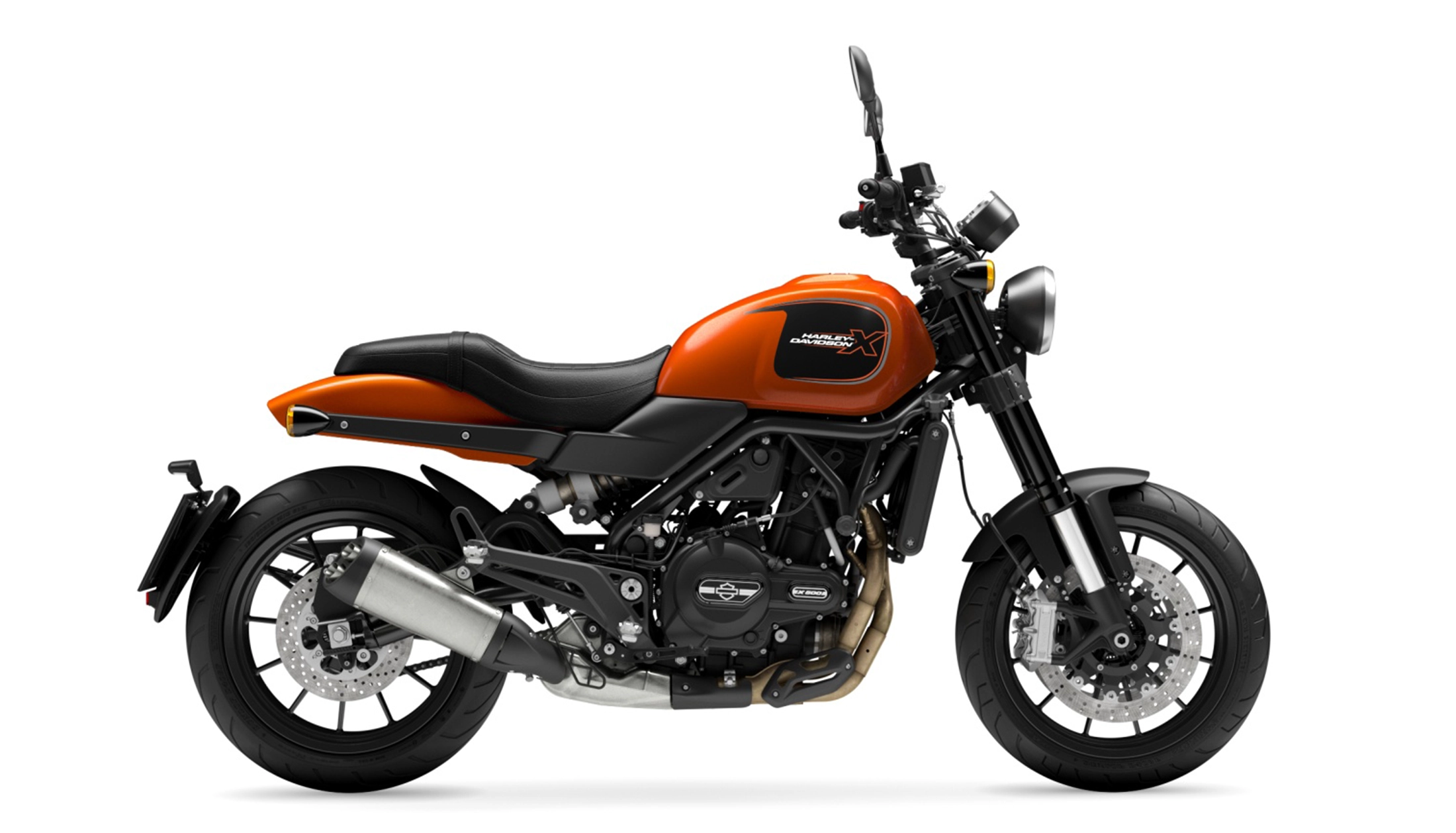

Harley-Davidson X™ 500

2025 Harley-Davidson X™ 500

Iconic Harley-Davidson roadster styling in a lightweight and agile package.

Harley-Davidson X™ 500
Disclaimer: Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

Fitur utama

Spesifikasi Terperinci

  • Dimensi
    add remove
    • Panjang
      2135 mm
    • Tinggi Jok
      820 mm
    • Jarak bebas ke tanah
      153 mm
    • Garpu (kepala kemudi) (derajat)
      24.5
    • Jejak
      100.4 mm
    • Jarak roda
      1485 mm
    • Ban, spesifikasi depan
      120/70-ZR17/58W
    • Ban, spesifikasi belakang
      160/60-ZR17/69W
    • Kapasitas bahan bakar
      13.1 l
    • Kapasitas oil (dengan filter)
      3.2 l
    • Bobot, saat dikirim
      199 kg
    • Bobot, berfungsi baik
      208.02 kg
    • Tire, type
      Maxxis Supermaxx ST
    • Static ground clearance
      153 mm
  • Mesin
    add remove
    • Mesin
      Liquid-cooled, Parallel-Twin, 500cc
    • Diameter
      69 mm
    • Jarak piston
      66.8 mm
    • Displacement
      500 cc
    • Rasio kompresi
      11.5:1
    • Sistem bahan bakar
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Pembuangan
      2 into 1 short single, 3 catalyst
  • Performa
    add remove
    • Metode Pengujian Torsi Mesin
      GB/T20076-2006, GB/T5363-2008
    • Torsi mesin
      46 Nm
    • Torsi mesin (RPM)
      6000
    • Horsepower
      47 HP / 35 kW @ 8500 rpm
    • Sudut kemiringan, kanan (derajat)
      46.9
    • Sudut kemiringan, kiri (derajat)
      49.5
    • Fuel economy testing method
      WMTC
    • Fuel economy
      4.85 l/100 km
    • CO2 emissions testing method
      WMTC
    • CO2 emissions
      112 g/km CO2
  • Powertrain
    add remove
    • Penggerak utama
      Chain, 74/38
    • Engine torque
      46 Nm
    • Rasio roda gigi (menyeluruh) Ke-1
      2.85
    • Rasio roda gigi (menyeluruh) Ke-2
      1.95
    • Rasio roda gigi (menyeluruh) Ke-3
      1.56
    • Rasio roda gigi (menyeluruh) Ke-4
      1.33
    • Rasio roda gigi (menyeluruh) Ke-5
      1.19
    • Rasio roda gigi (menyeluruh) Ke-6
      1.08
  • Sasis
    add remove
    • Garpu Depan
      50mm upside down rebound adjustable
    • Shock Belakang
      Oil and gas separation type, rebound damping adjustable, preload adjustable shock absorber
    • Roda, jenis depan
      Cast aluminium
    • Roda, jenis belakang
      Cast aluminium
    • Rem, Jenis Rotor
      Front floating, rear solid
    • Rem, jenis kaliper
      4-piston fixed front and 1-piston floating rear
  • Listrik
    add remove
    • Lampu (sesuai peraturan negara), lampu indikator
      All LED, low beam, high beam and signature position lamp. All LED Tail/Stop, front signal lights and rear turn signals.
    • Alat pengukur
      Combined electronic instrument stepper motor indicating vehicle speed, digital indicates rpm, hour, total trip, two trips (A + B), km/mile indication
  • Pilihan warna
    add remove
    • Dynamic Orange
    • Cosmic Blue
    • Dramatic Black
    • White Pearl
2025 Harley-Davidson X™ 500
